In this post you can see Mitsubishi Outdoor Wiring Model MU-C13VC and MU-GC13VD this wiring is created by fully4world. this wiring in colors for your help.
This Diagram is include with Over current Relay
| SYMBOL | NAME |
|---|---|
| C1 | Compressor Capacitor |
| C2 | Fan Motor Capacitor |
| F1 | Fuse (T3.15A L250V) |
| F2 | Fuse (T20A L250V) |
| MC | Compressor |
| MF | Outdoor Fan Motor |
| TB1 | Terminal Block |
| TB2 | Terminal Block |
| 51C | Over current Relay |
| 52C | Compressor Contactor |

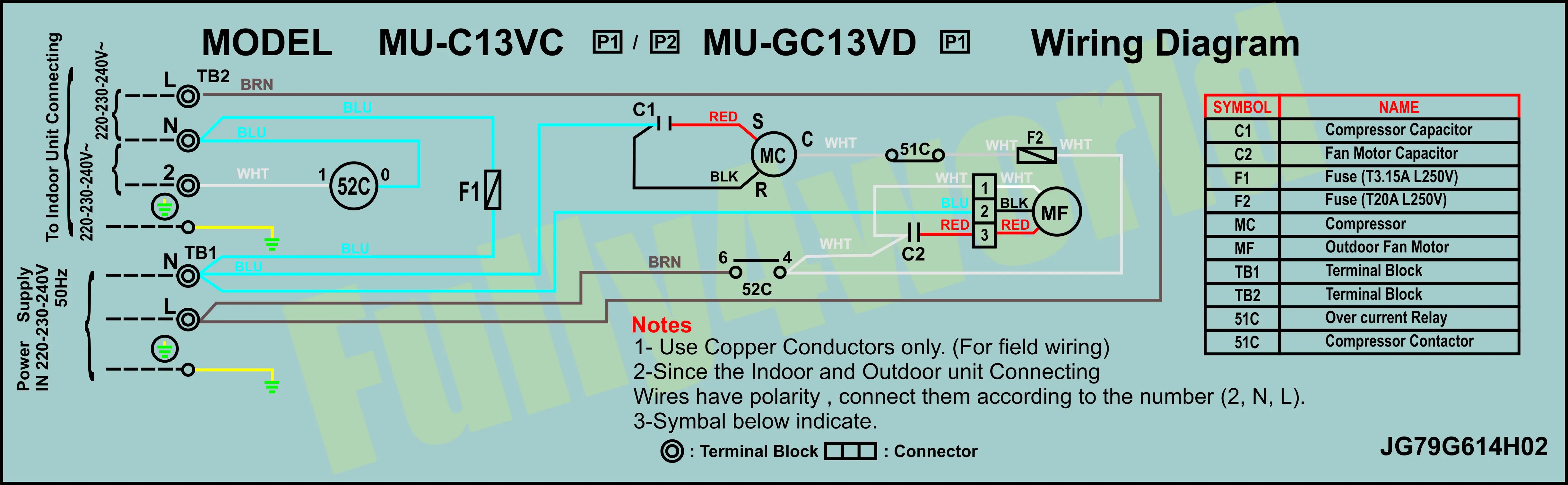

Diagram in JPG :
