What is Reversing Valve ?
Reversing Valve is a Part of HVAC which Convert Air in Cooling and heating. In this Post you can see Reversing Valve Diagram in Heating Mode and Cooling Mode. In this Diagram you can see that how to work Reversing Valve and how to convert air in heating and cooling mode. This Diagram is very easy to understand.
We can call Reversing Valve with 4-way Valve Because Reversing valve have 4 Pipes You can See below pipes name.
Reversing Valve or 4-Way Valve Pipes Name :
- Discharge Pipe
- Condenser Pipe
- Suction Pipe
- Evaporator Pipe
How to work on Heating Mode ?
In heating mode the gas passes through the compressor to the evaporator and then the gas goes from the evaporator to the condenser And then from the condenser to the compressor suction pipe
How to work on Cooling Mode ?
In Cooling mode the gas passes through the compressor to the Condenser and then the gas goes from the Condenser to the evaporator And then from the evaporator to the compressor suction pipe.

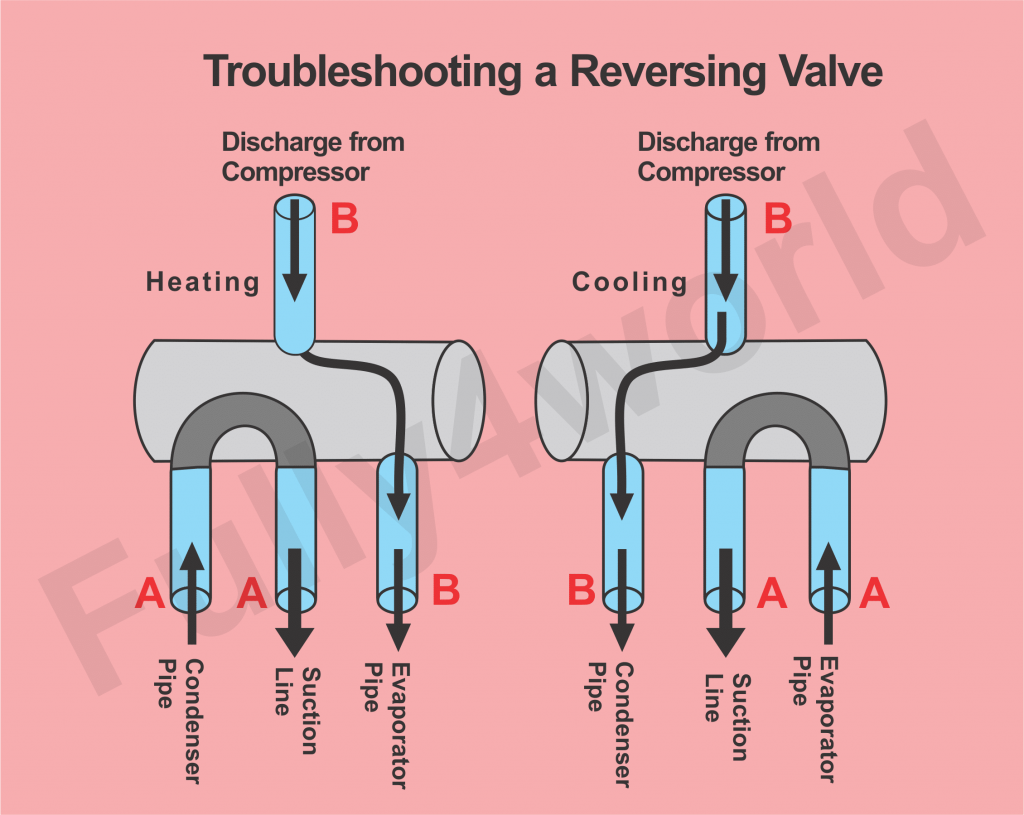

Diagram of Reversing Valve
